MYONE

Terminali Self Service

MYVIRTUAL V1

SCREEN: SINGLE SCREEN IN LANDSCAPE MODE
1st DISPLAY: 24” PCAP TOUCH MONITOR (16:9, FULL HD, IPS, ANTIGLARE, 5mm)
HARDWARE PC: CORE i3/i5/i7 – RAM 4GB - SSD 120 GB
OPERATING SYSTEM: WINDOWS – LINUX
BILL ACCEPTOR: ITL NV9/NV10/NV200 - JCM IPRO/UBA/VEGA – MEI SC ADVANCE
COIN ACCEPTOR: ITL NV9/NV10/NV200 - JCM IPRO/UBA/VEGA – MEI SC ADVANCE
COIN ACCEPTOR: COMESTERO RM5 HD – NRI G13 - AZKOYEN AC6
TICKET PRINTER: CUSTOM TG2480/VKP80III – SANEI SK1-311 – EPSON
BARCODE SCANNER: NEWLAND FM3051/FM420/FM100
CARD READER: CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
HOPPER (optional): ITL SMART HOPPER
DIMENSIONS: CM 127 x 61 x 42.5
WEIGHT: 95 KG - 105 KG
mv01
mv05
mv05B
mv02
mv06
mv05W

MYVIRTUAL V2

SCREEN: DUAL SCREEN IN LANDSCAPE MODE
1st DISPLAY: 24” PCAP TOUCH MONITOR (16:9, FULL HD, IPS, ANTIGLARE, 5mm)
2st DISPLAY: 24” MONITOR (16:9, FULL HD, IPS, ANTIGLARE, 5mm)
HARDWARE PC: CORE i3/i5/i7 – RAM 4GB - SSD 120 GB
OPERATING SYSTEM: WINDOWS – LINUX
BILL ACCEPTOR: ITL NV9/NV10/NV200 - JCM IPRO/UBA/VEGA – MEI SC ADVANCE
COIN ACCEPTOR: COMESTERO RM5 HD – NRI G13 - AZKOYEN AC6
TICKET PRINTER: CUSTOM TG2480/VKP80III – SANEI SK1-311 – EPSON
BARCODE SCANNER: NEWLAND FM3051/FM420/FM100
CARD READER: CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
HOPPER (optional): ITL SMART HOPPER
DIMENSIONS: CM 167 x 61 x 42.5
WEIGHT: 100 KG - 110 KG

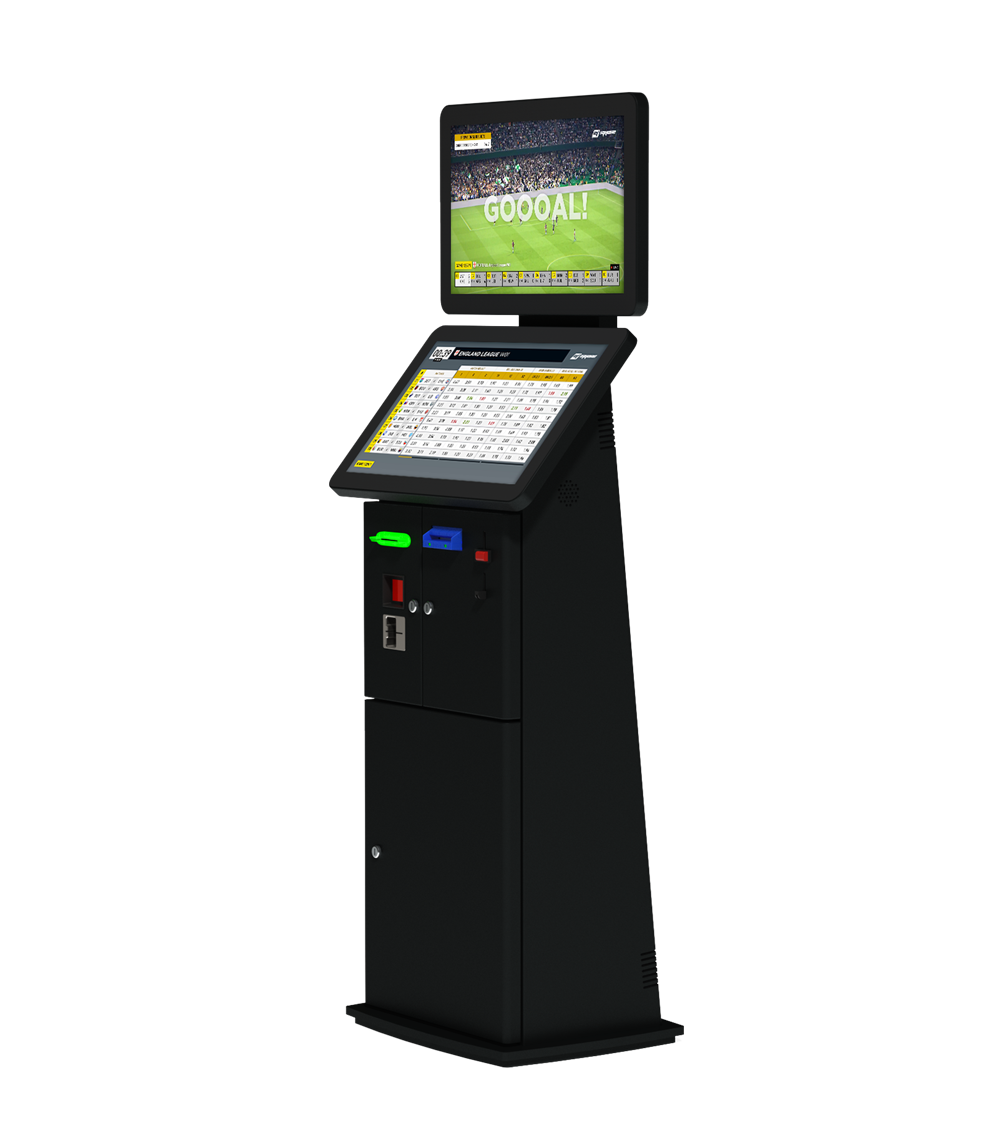

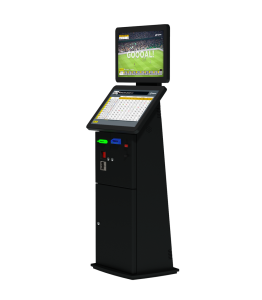

02myvirtual-01-neroB

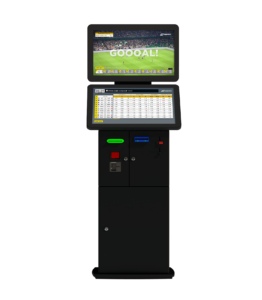

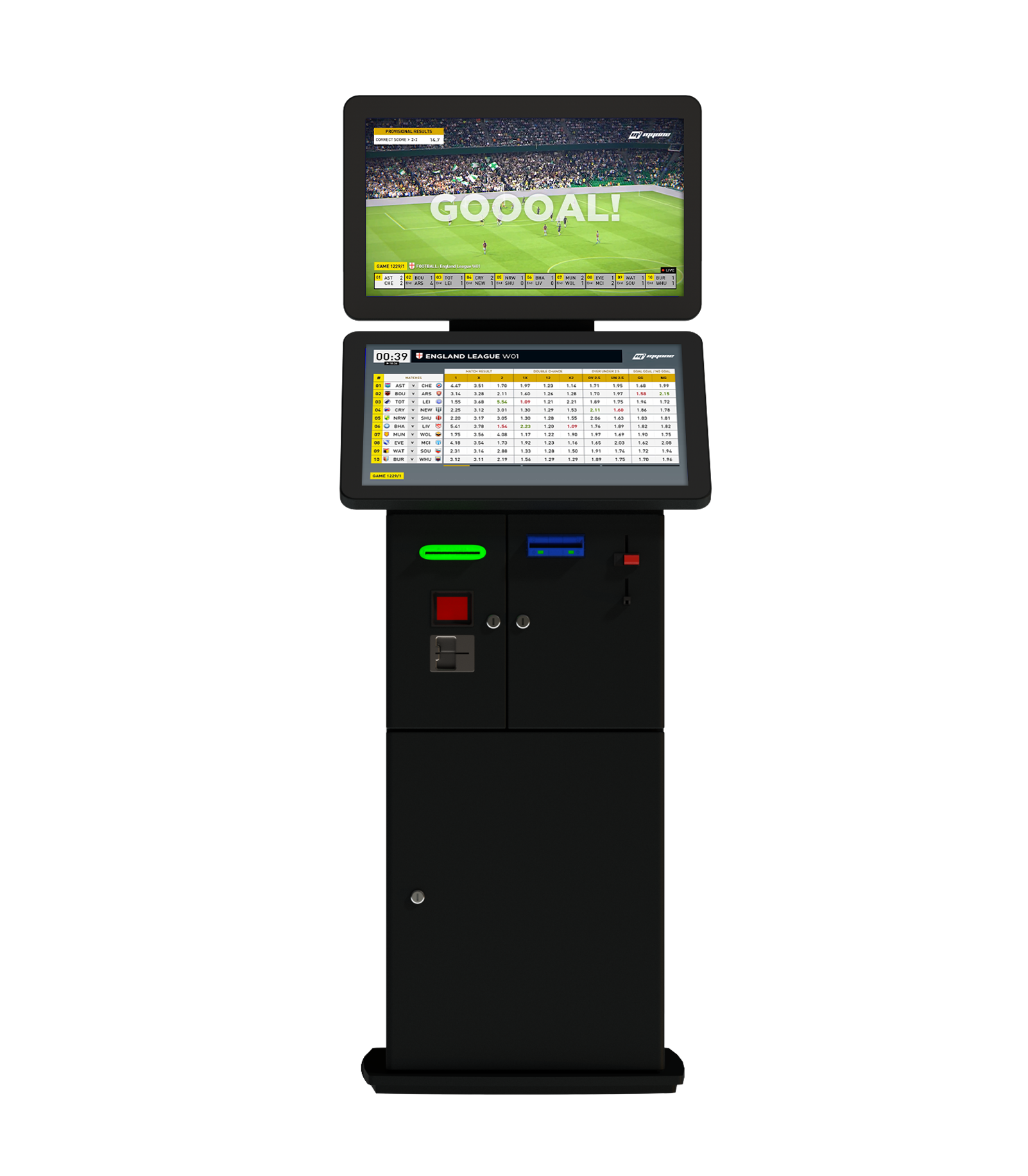

MYVIRTUAL-V2-3-1B

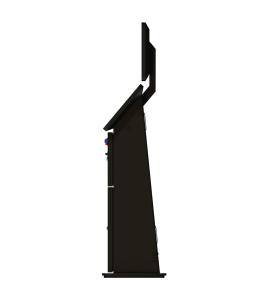

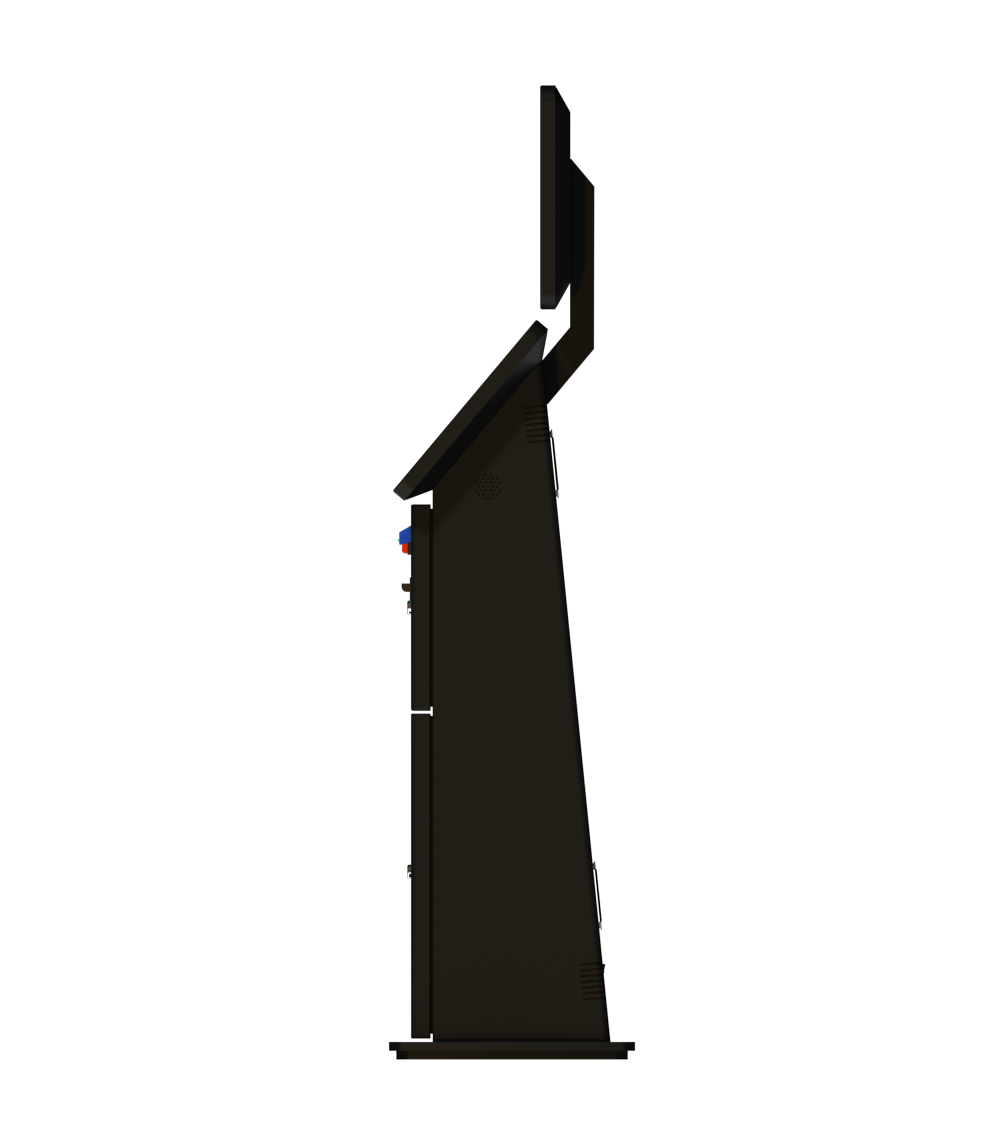

02myvirtual-02-neroB

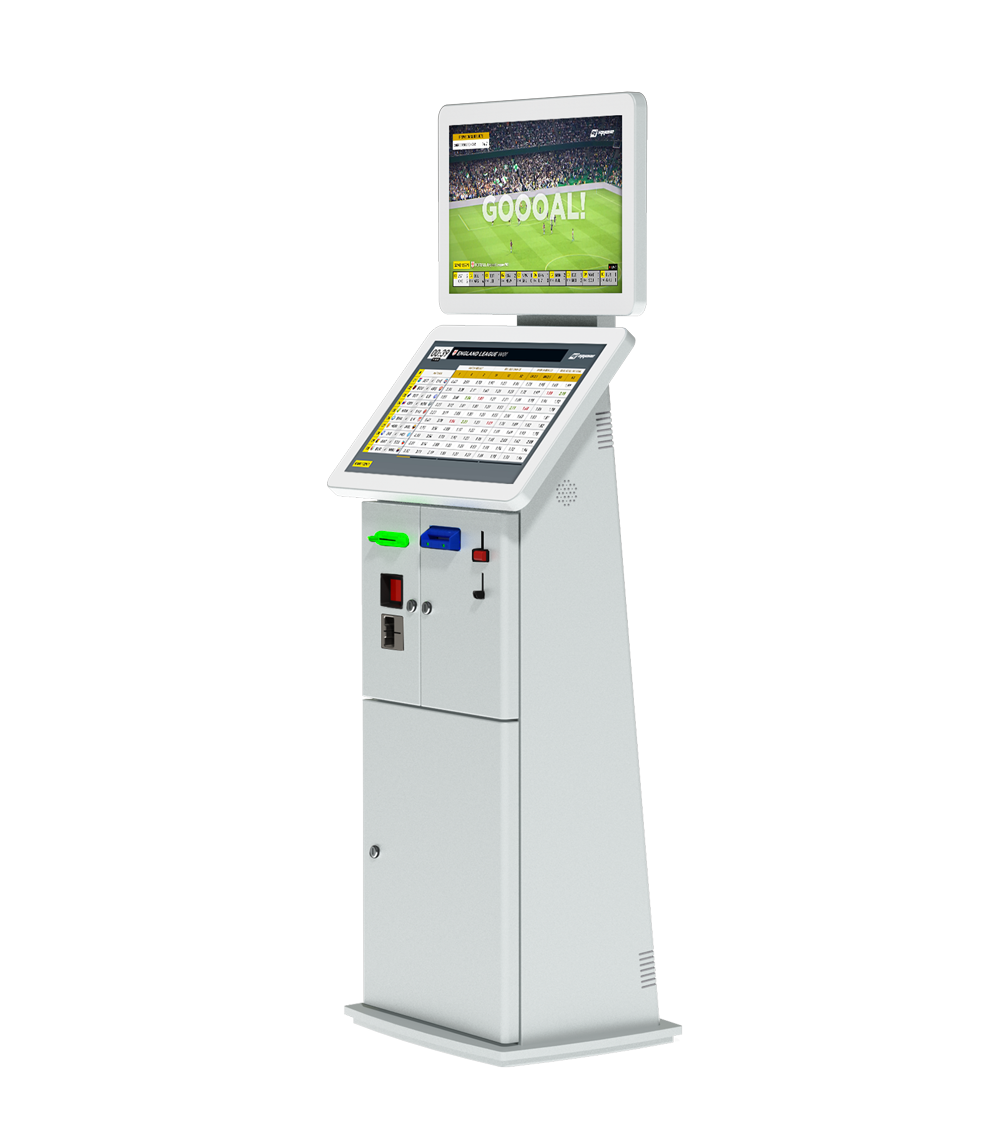

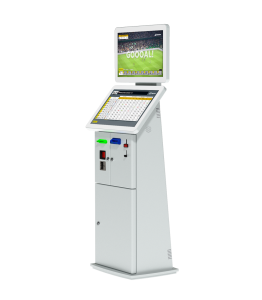

02myvirtual-01-neroBW

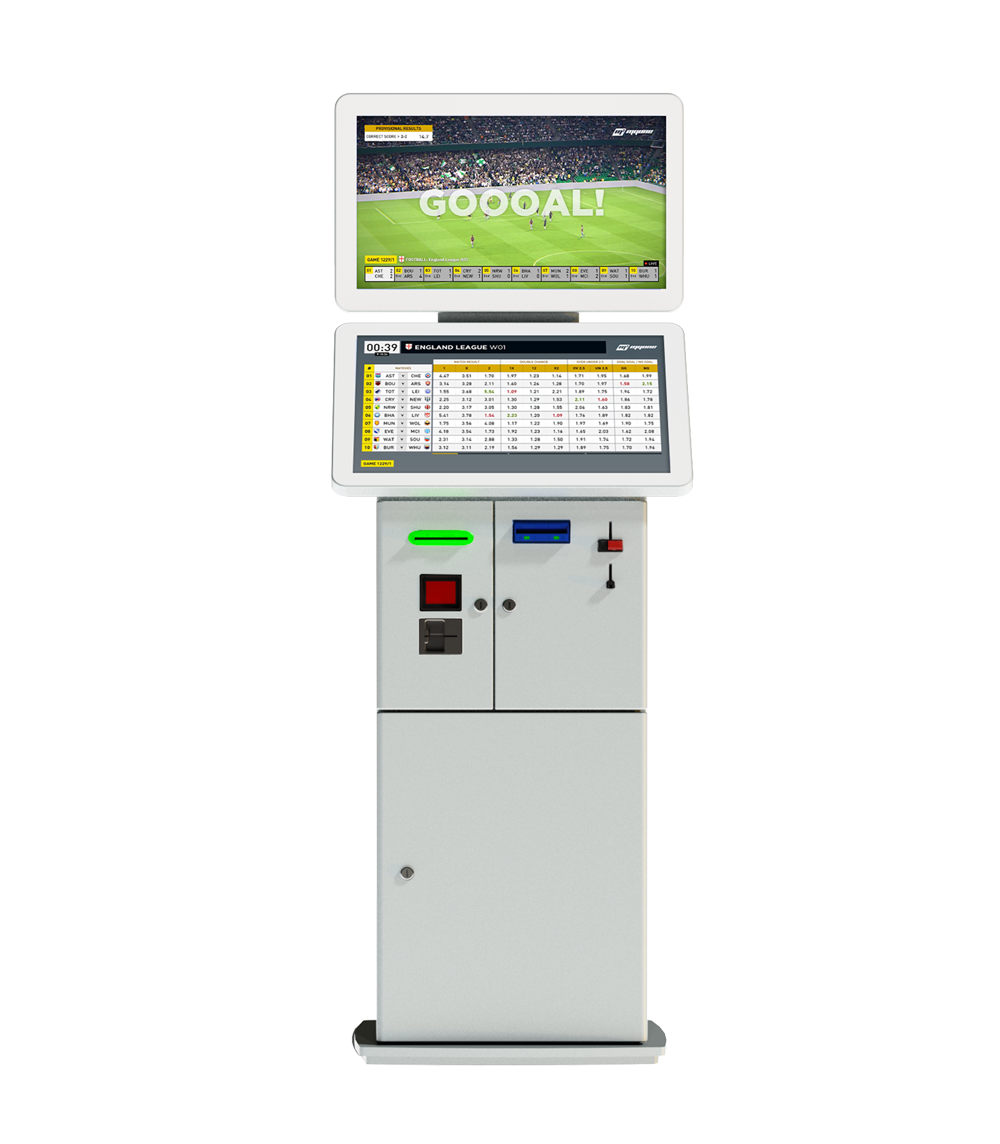

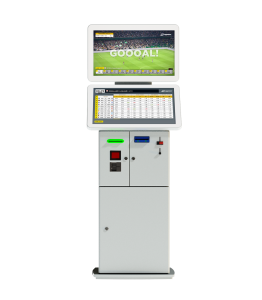

02myvirtual-03-neroBW

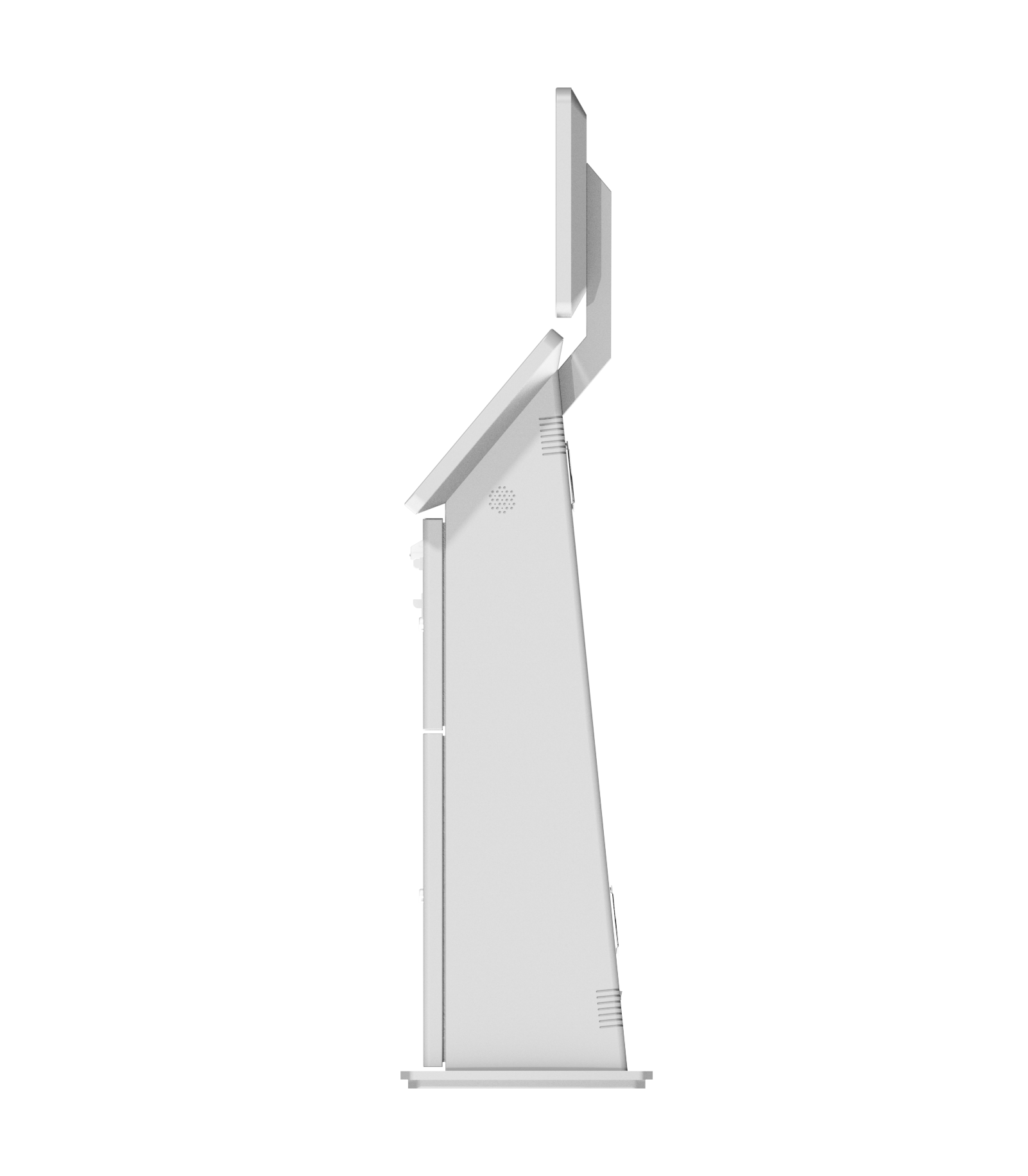

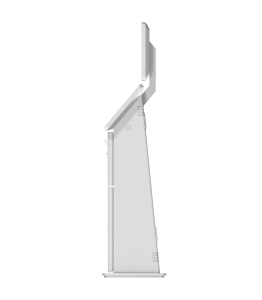

02myvirtual-02-neroBW

MYVIRTUAL V3

SCREEN: SINGLE SCREEN IN PORTRAIT MODE
1st DISPLAY: 32” PCAP TOUCH MONITOR (16:9, FULL HD, IPS, ANTIGLARE, 5mm)
HARDWARE PC: CORE i3/i5/i7 – RAM 4GB - SSD 120 GB
OPERATING SYSTEM: WINDOWS – LINUX
BILL ACCEPTOR: ITL NV9/NV10/NV200 - JCM IPRO/UBA/VEGA – MEI SC ADVANCE
COIN ACCEPTOR: COMESTERO RM5 HD – NRI G13 - AZKOYEN AC6
TICKET PRINTER: CUSTOM TG2480/VKP80III – SANEI SK1-311 – EPSON
BARCODE SCANNER: NEWLAND FM3051/FM420/FM100
CARD READER: CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
HOPPER (optional): ITL SMART HOPPER
DIMENSIONS: CM 174 x 61 x 42.5
WEIGHT: 105 KG - 115 KG

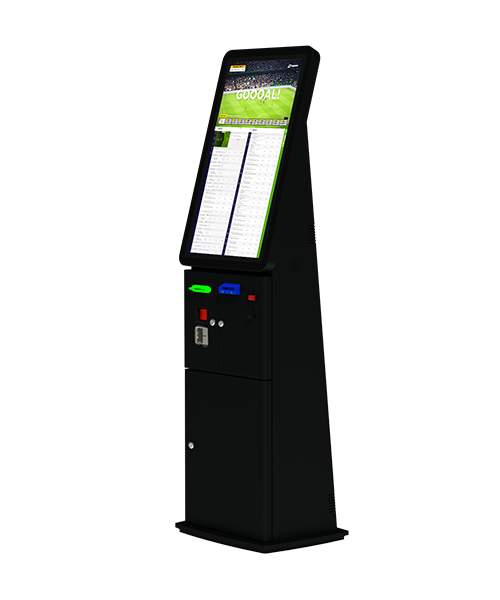

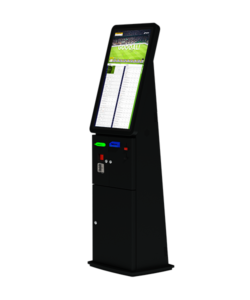

MM01

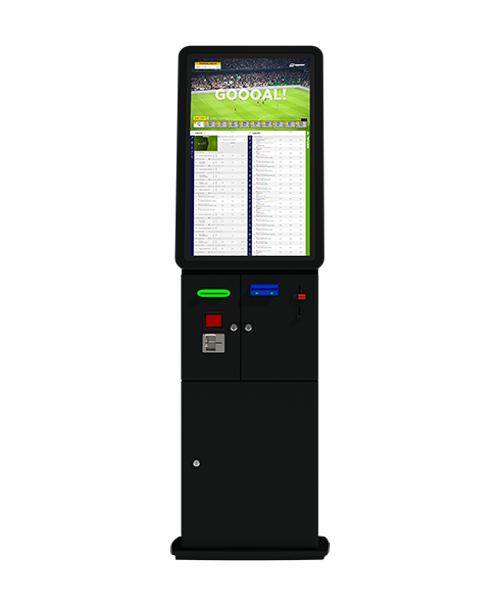

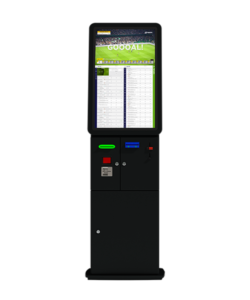

MM02WW

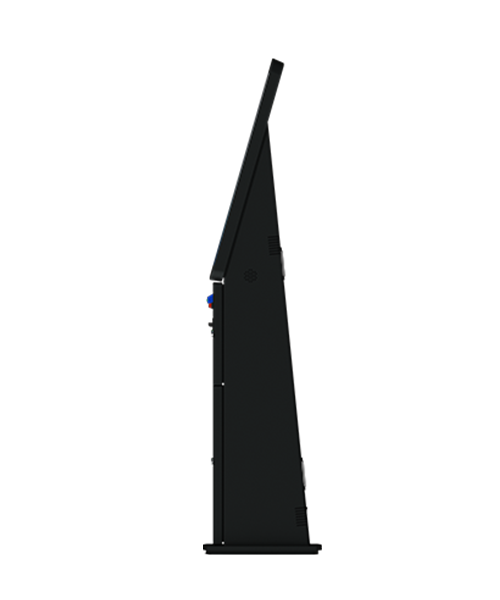

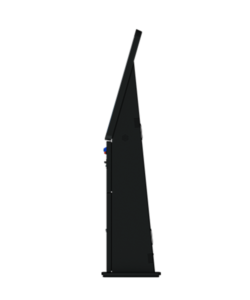

MM03

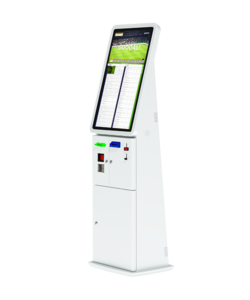

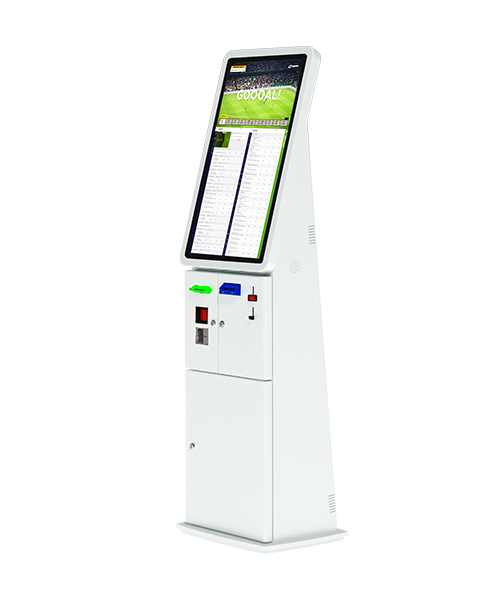

MM04

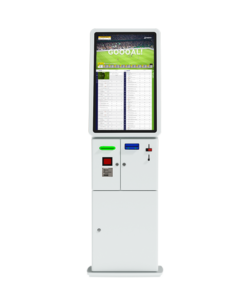

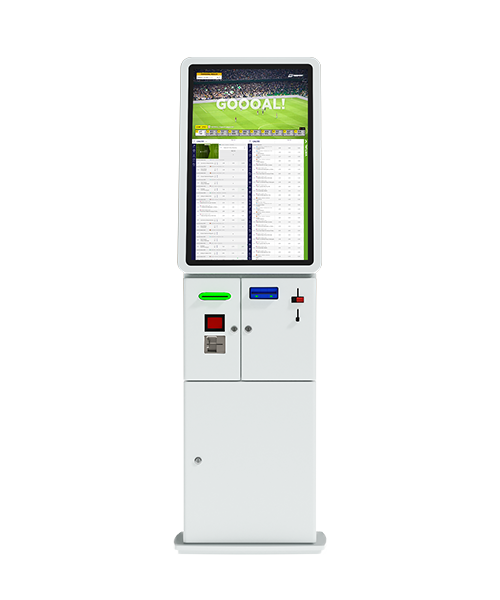

MM05

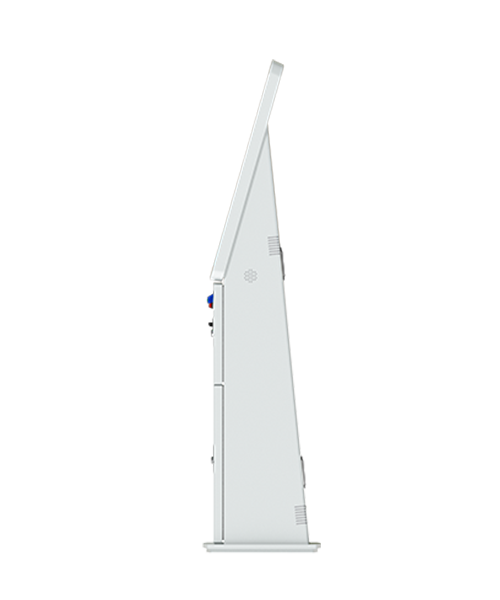

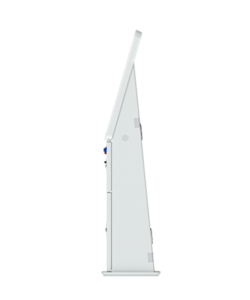

MM06

PHILIPPE 40 PLUS

SCREEN: SINGLE SCREEN IN LANDSCAPE MODE
1st DISPLAY: 24” PCAP TOUCH MONITOR (16:9, FULL HD, IPS, ANTIGLARE, 5mm)
HARDWARE PC: CORE i3/i5/i7 – RAM 4GB - SSD 120 GB
OPERATING SYSTEM: WINDOWS – LINUX
BILL ACCEPTOR: ITL NV9/NV10/NV200 - JCM IPRO/UBA/VEGA – MEI SC ADVANCE
COIN ACCEPTOR: COMESTERO RM5 HD – NRI G13 - AZKOYEN AC6
TICKET PRINTER: CUSTOM TG2480/VKP80III – SANEI SK1-311 – EPSON
BARCODE SCANNER: NEWLAND FM3051/FM420/FM100
CARD READER: CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
HOPPER (optional): ITL SMART HOPPER
DIMENSIONS: CM 112 x 95.4 x 49.5
WEIGHT: 100 KG - 110 KG

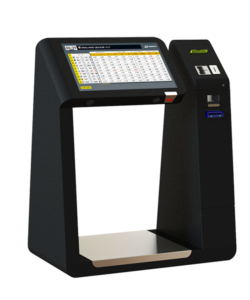

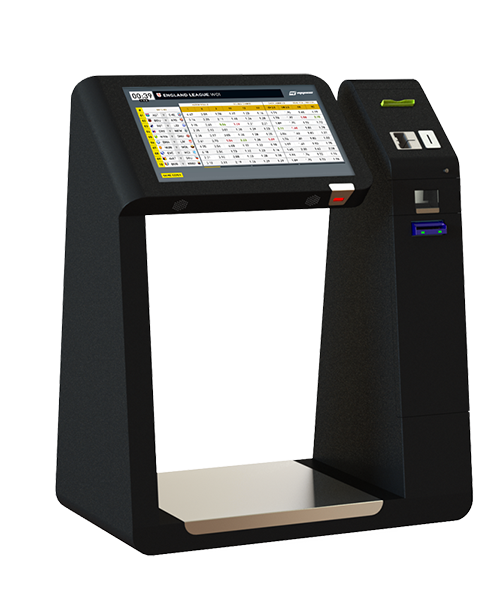

Pus01

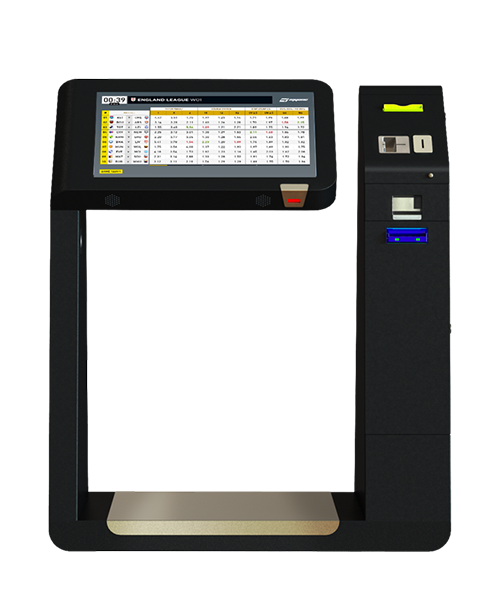

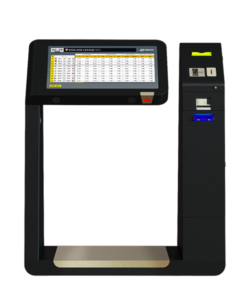

Pus02

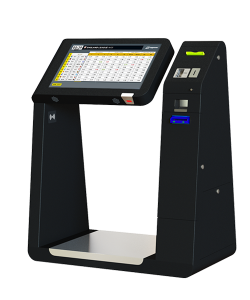

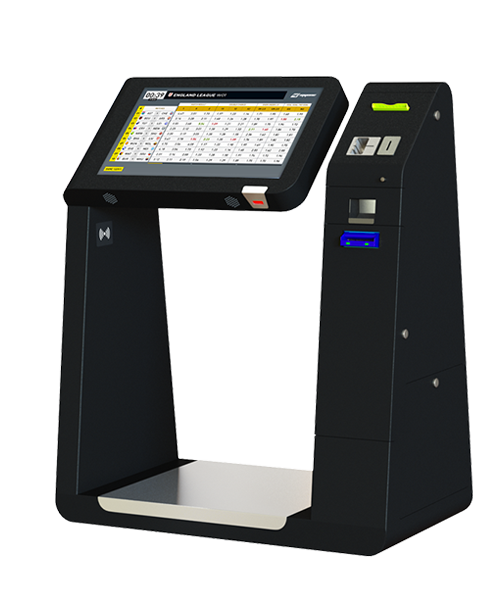

PHILIPPE40-PLUS-3B

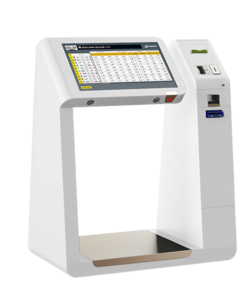

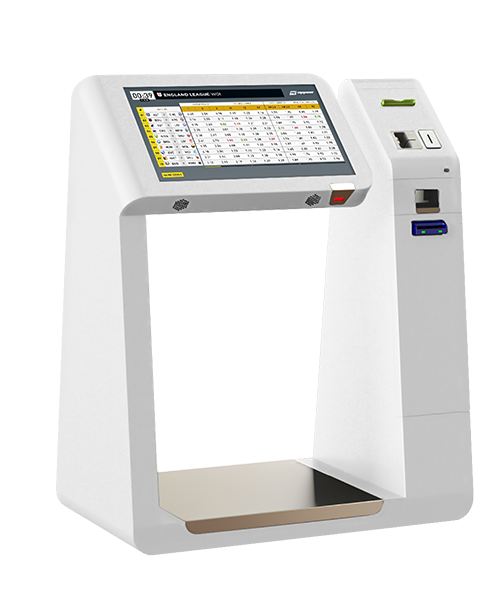

Philippe-40-plus_3_terminali-self-service

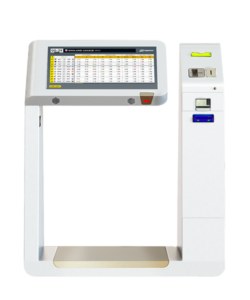

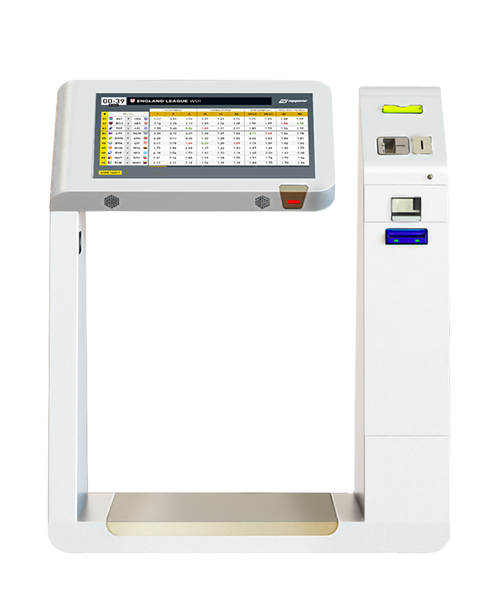

Pus05

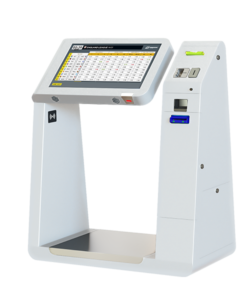

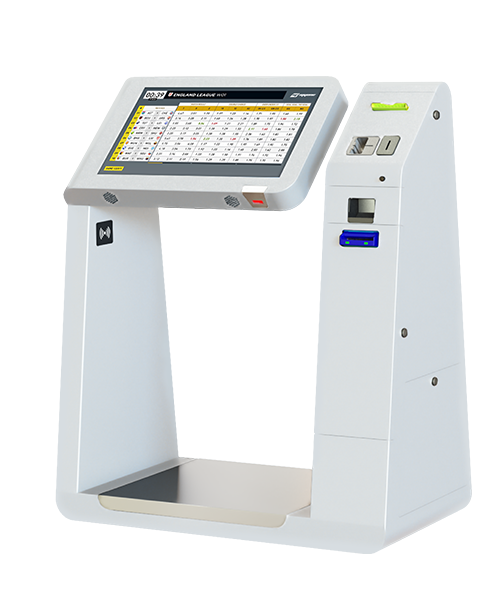

Philippe-40-plus_1_terminali-self-service

BRITT

SCREEN: DUAL SCREEN IN LANDSCAPE + PORTRAIT MODE
1st DISPLAY: 24” PCAP TOUCH MONITOR
2st DISPLAY: 32”/43” PCAP TOUCH MONITOR
HARDWARE PC: CORE i3/i5/i7 – RAM 4GB - SSD 120 GB
OPERATING SYSTEM: WINDOWS – LINUX
BILL ACCEPTOR: ITL NV9/NV10/NV200 - JCM IPRO/UBA/VEGA – MEI SC ADVANCE
COIN + HOPPER: ITL SMART COIN SYSTEM/TWIN SMART COIN SYSTEM
TICKET PRINTER: CUSTOM TG2480/VKP80III – SANEI SK1-311 – EPSON
BARCODE SCANNER: NEWLAND FM3051/FM420/FM100 - OPTICON
POS - CREDIT CARD READER: INGENICO ISELF SERIES (DUO/TRIO)/SELF (2000/5000)/CONTACTLESS POS
CARD READER (optional): CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
BILL RECYCLER (optional): JCM IPRO RC – MEI SCR ADVANCE
COIN ACCEPTOR (optional): COMESTERO RM5 HD – NRI G13 - AZKOYEN AC6
DIMENSIONS: CM 218 x 68 x 59 (height x width x depth)
WEIGHT: 115 KG - 125 KG

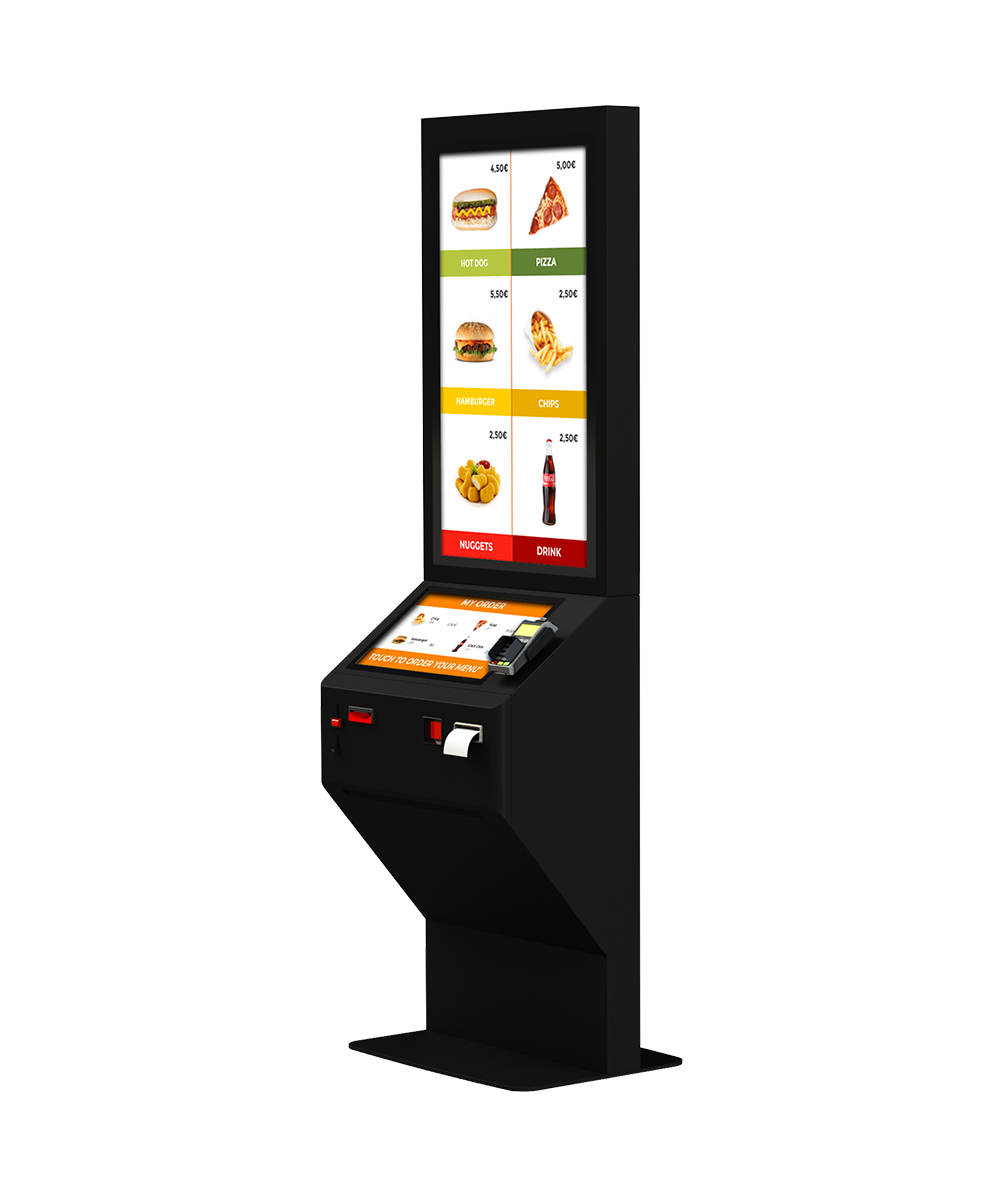

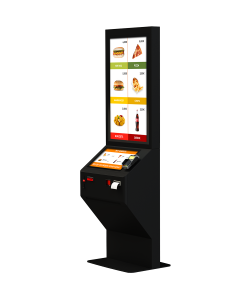

nero01

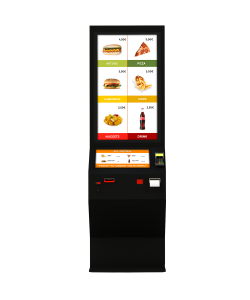

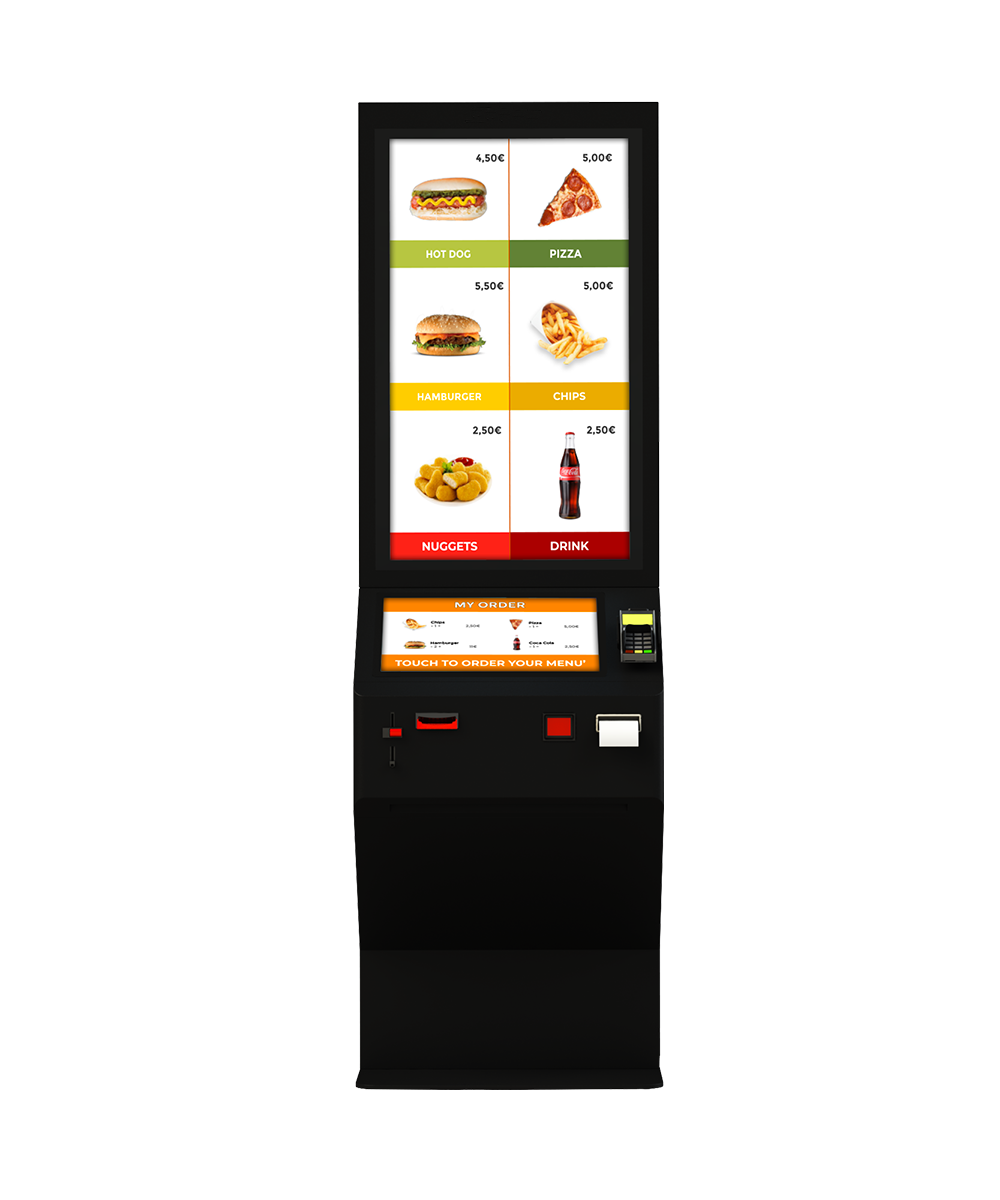

nero02

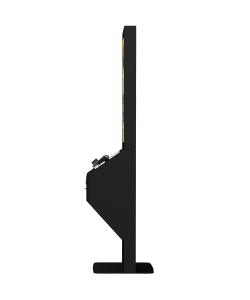

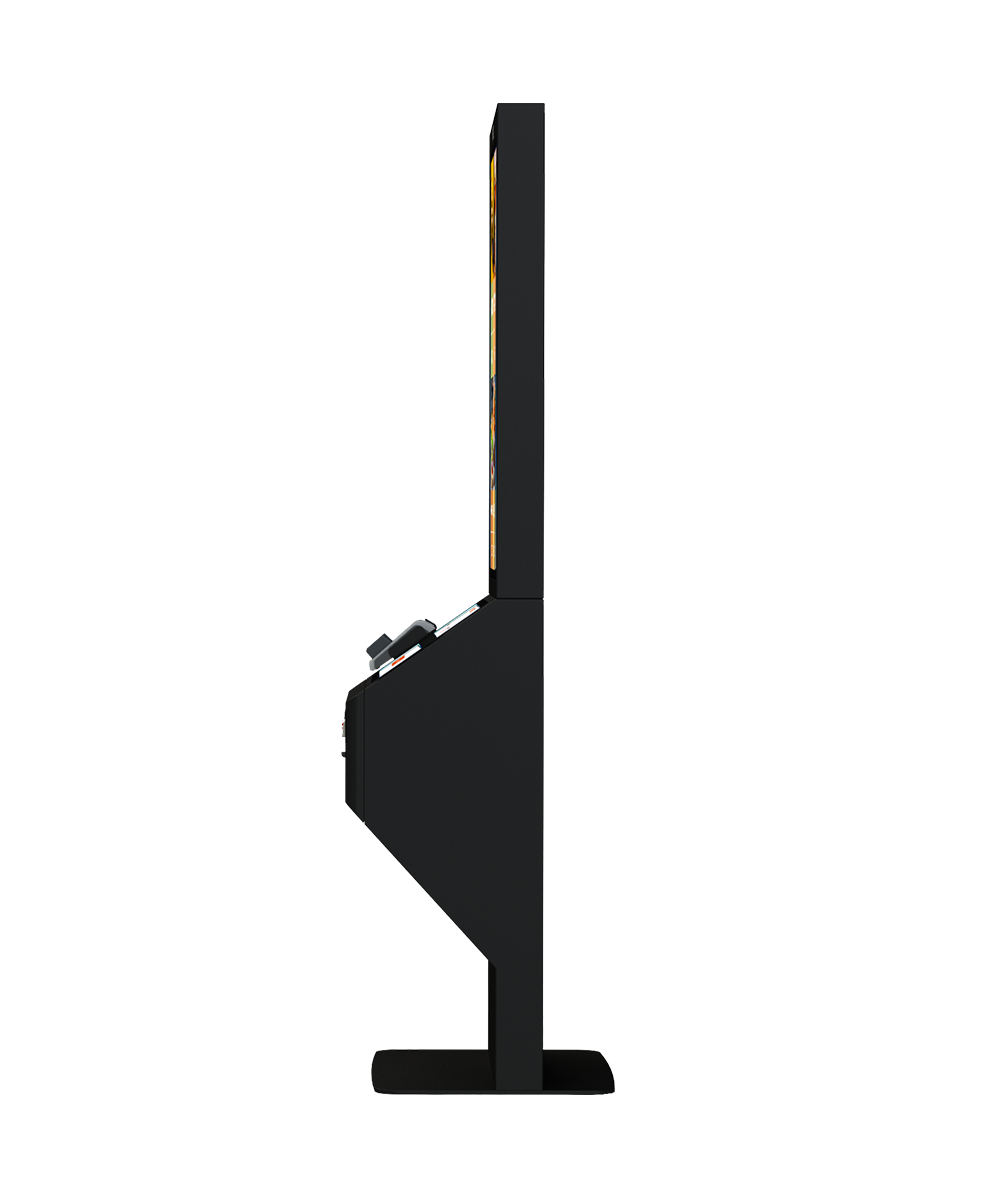

nero03

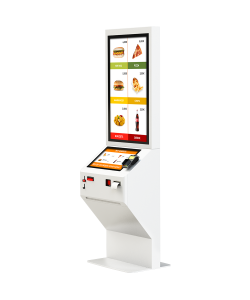

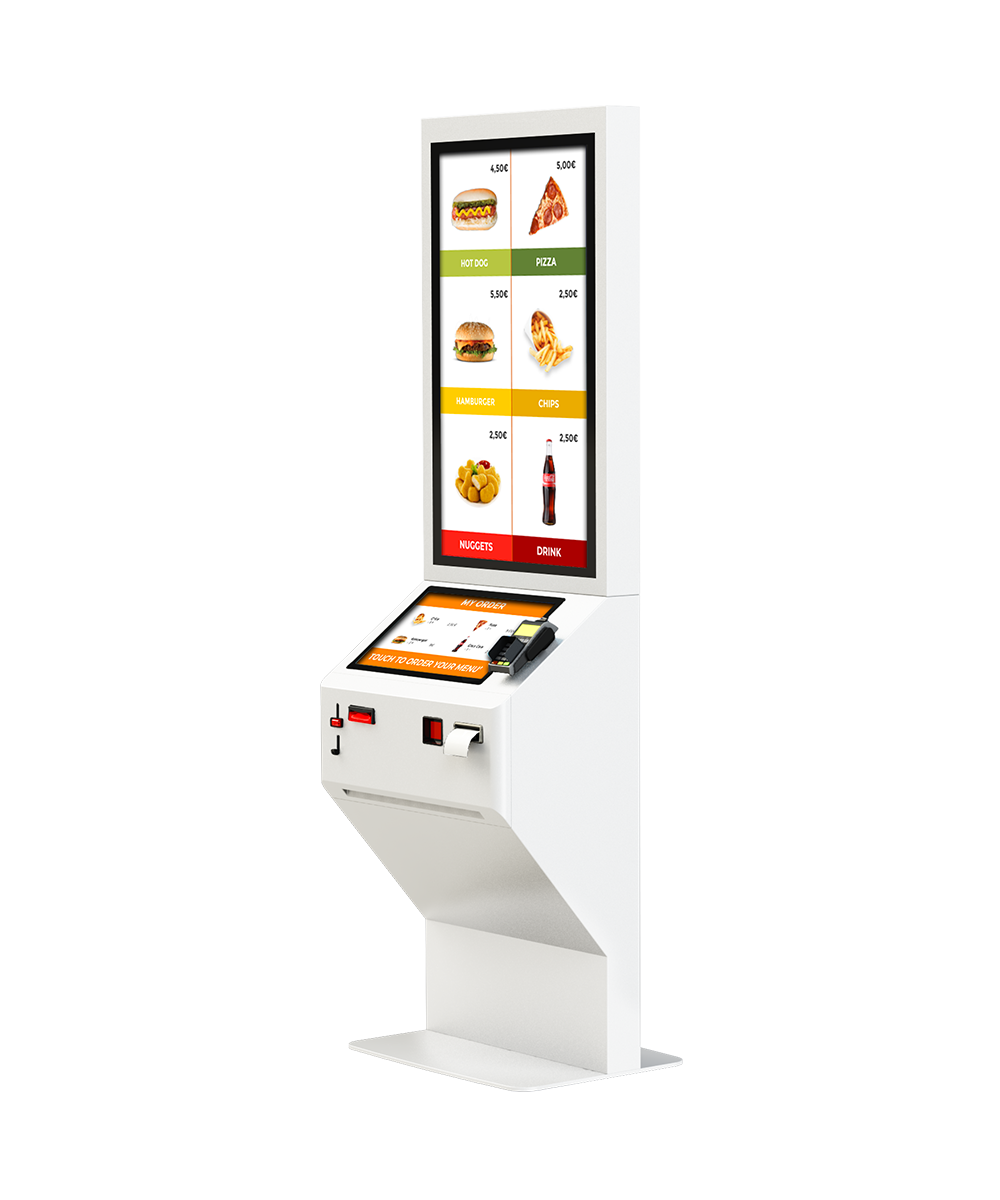

bianco01

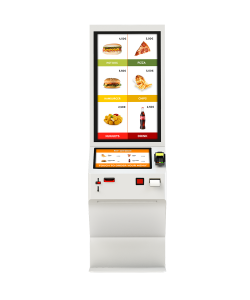

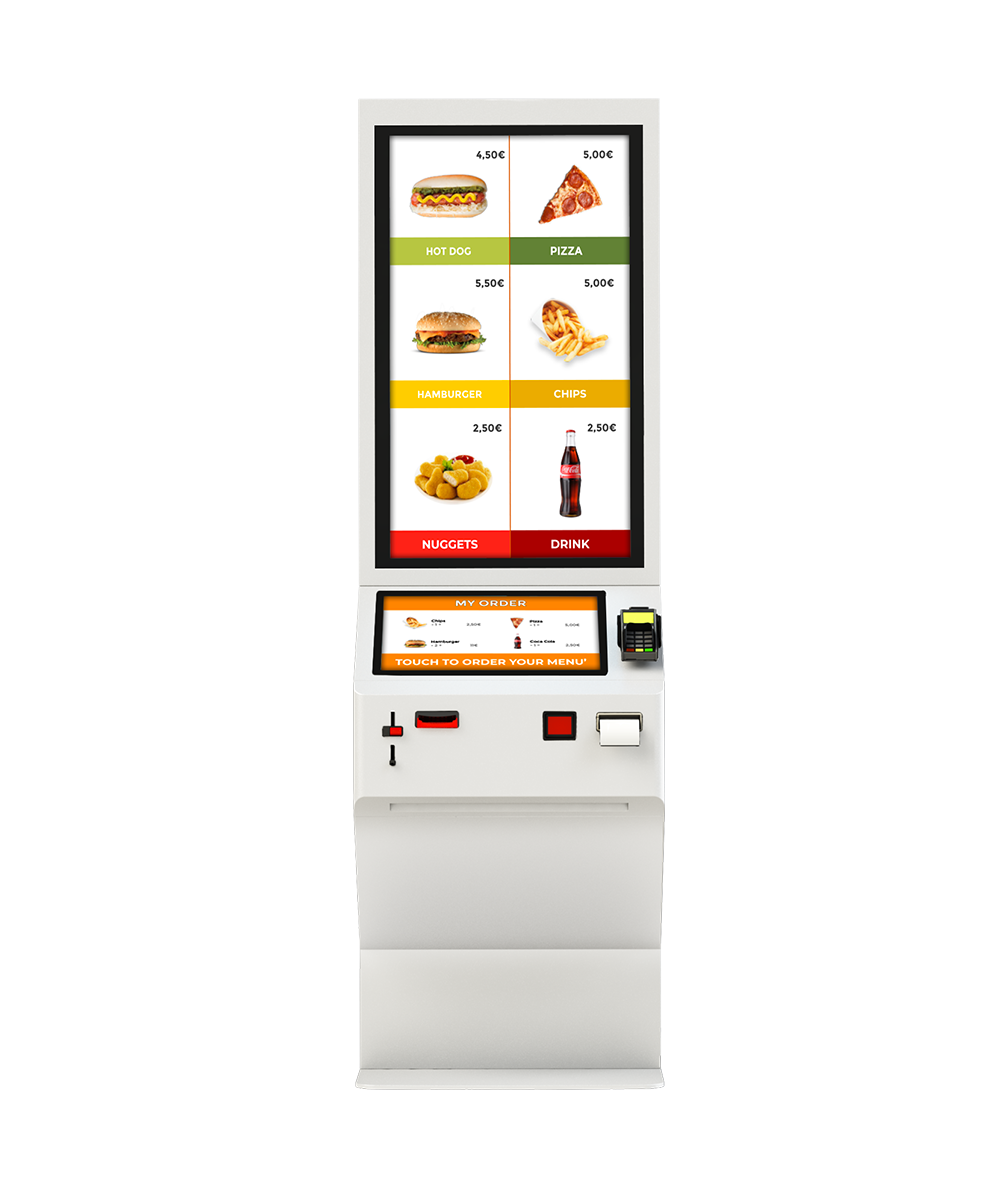

bianco02

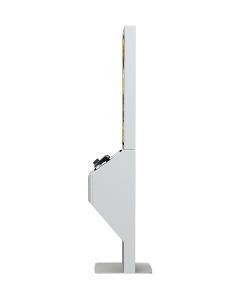

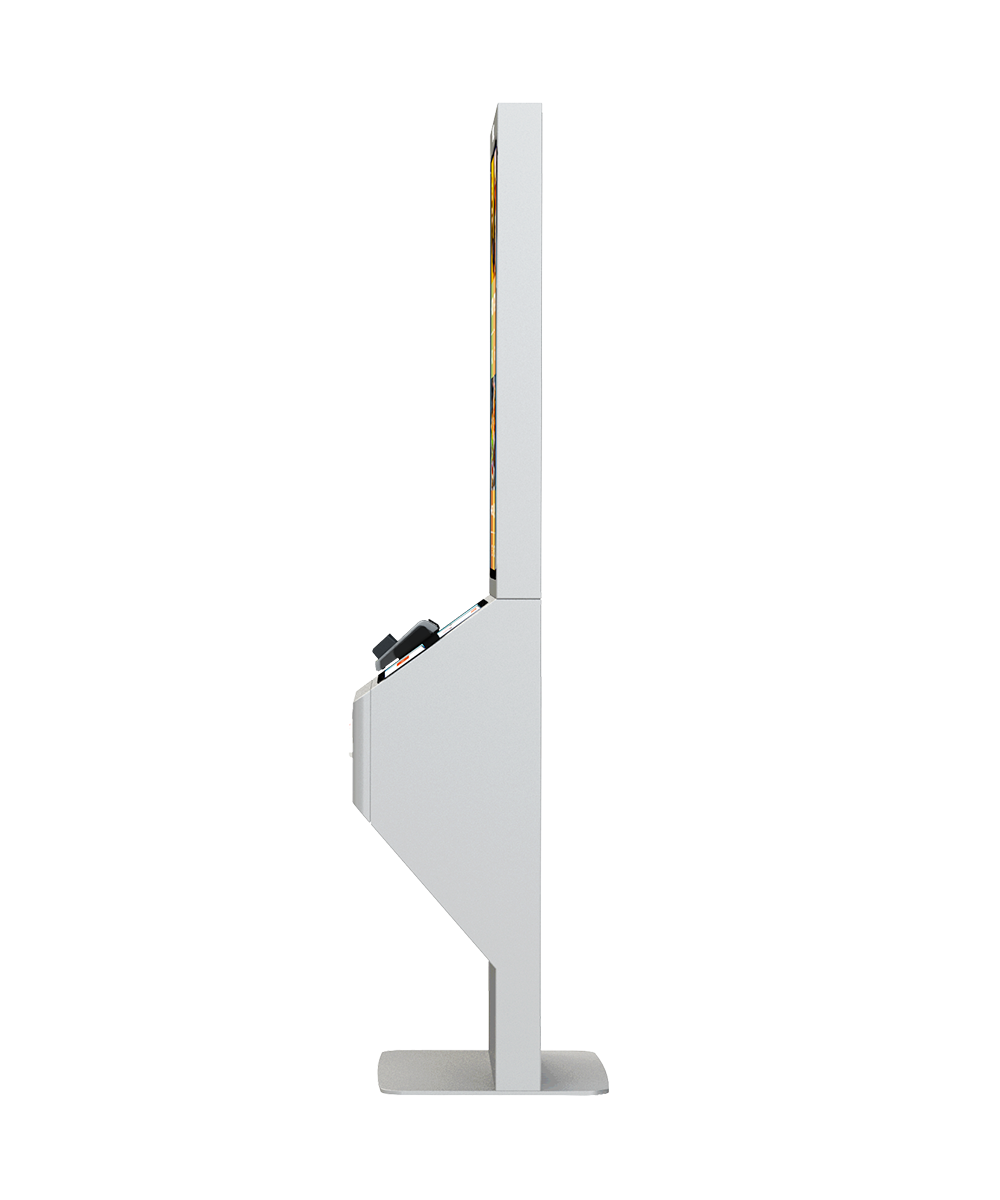

bianco03

MYVIEW

SCREEN: SINGLE SCREEN IN PORTRAIT MODE
1st DISPLAY: 32”/43”/49”/55” MONITOR
TOUCHSCREEN (optl.): PCAP MULTI TOUCH 10T
HARDWARE: INTERNAL PLAYER
HARDWARE PC (optl.): CORE i3/i5/i7 – RAM 4GB - SSD 120 GB
2st DISPLAY (optl.): 2”/43”/49”/55” MONITOR
CARD READER (optl.): CREATOR CRT 288 – DDM HOPT+SCHULER 833 – HID OMNIKEY 5022CL
DIMENSIONS: CM 176.5 x 65 x 48.5
WEIGHT: 75 KG - 85 KG
001
002
003
004
005
006
